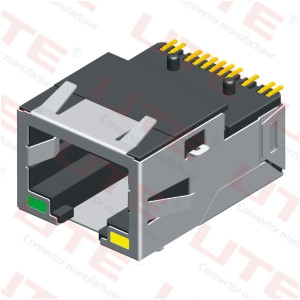

RJ45模塊的核心是模塊化插孔。鍍金的導線或插座孔可維持與模塊化的插座彈片間穩定而可靠的電器連接。由于彈片與插孔間的摩擦作用，電接觸隨著插頭的插入而得到進一步加強。插孔主體設計采用整體鎖定機制，這樣當模塊化插頭插入時，插頭和插孔的界面外可產生最大的拉拔強度。RJ45模塊上的接線模塊通過“U”形接線槽來連接雙絞線，鎖定彈片可以在面板等信息出口裝置上固定RJ45模塊
Electrical Current Rating : 1.5 Ampere Insulation Resistance : 1000 MΩ Min Dielectric Withstanding : 1500 V Contact Resistance : 30 mΩ Max | Mechanical Mating Force : 30N Max Unmating Force: 50N Min Durability : 750 Cycles |
Material Housing : Nylon/PBT UL 94V-0 Contact : Phosphor Bronze | Plating Contact : Gold plated on contact area Nickel plated overall |
Environment Characteristics Operating temperature : -40℃ to +85℃ | Feature Meets IEEE 802.3 spectification Jack cavity conforms to FCC rules and regulation Part 68 subpart F |
